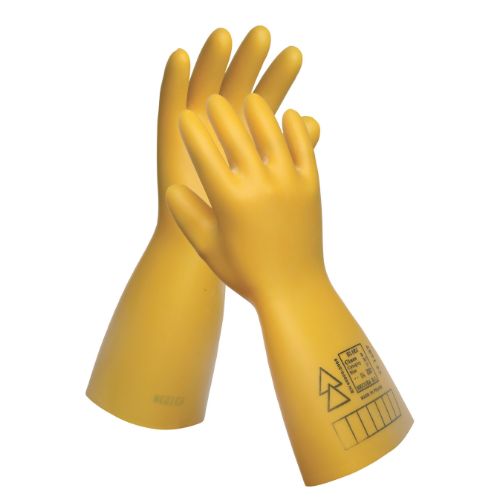

Types of Gloves: ELSEC 20

• *R – Resistance to acid, oil and ozone
• *C – Resistance to extremely low temperature
• 00/RC 0/RC 1/RC 2/RC 3/RC
• Proof Test Voltage (r.m.s.) 2.5 kV 5 kV 10 kV 20 kV 30 kV
• Max Working Voltage (a.c., r.m.s.) 0.5 kV 1 kV 7.5 kV 17 kV 26.5 kV
• Min Alternating Withstand Test
• Voltage, Effective Value: 5 kV 10 kV 20 kV 30 kV 40 kV
• Max Leakage Current (routine test) < 12 mA to 18 mA
• Glove’s Thickness 0.8 mm to 2.9mm (Depends on Class)
• Min Tensile Strength 14 mPa

• Type		ELSEC 2,5	ELSEC 5	ELSEC 10	ELSEC 20	ELSEC 30
  Catalogue number		S5911000	S5912000	S5913000	S5914000	S5915000
  Class/Category, acc. to EN 60903:2003 + AC2:2005		00/RC	0/RC	1/RC	2/RC	3/RC
  Designation of maximum use voltage	AC, V rms	500	1 000	7 500	17 000	26 500
  	DC, V	750	1 500	11 250	25 500	39 750
  AC tests	Proof voltage kV, rms	2,5	5	10	20	30
  	Maximum proof test current, mA, rms, (routine test)	12	12	14	16	18
  	Withstand test voltage kV, rms	5	10	20	30	40
  Type		ELSEC 2,5	ELSEC 5	ELSEC 10	ELSEC 20	ELSEC 30
  Catalogue number		S5911000	S5912000	S5913000	S5914000	S5915000
  DC tests	Proof test voltage Avg kV	4	10	20	30	40
  	Withstand test voltage Avg kV,	8	20	40	60	70
  Length, mm		360	360	360	360	360
  Size		8, 9, 10, 11,12	8, 9, 10, 11,12	8, 9, 10, 11,12	8, 9, 10, 11,12	9,10, 11,12
  Cuff		Straight	Straight	Straight	Straight	Straight
