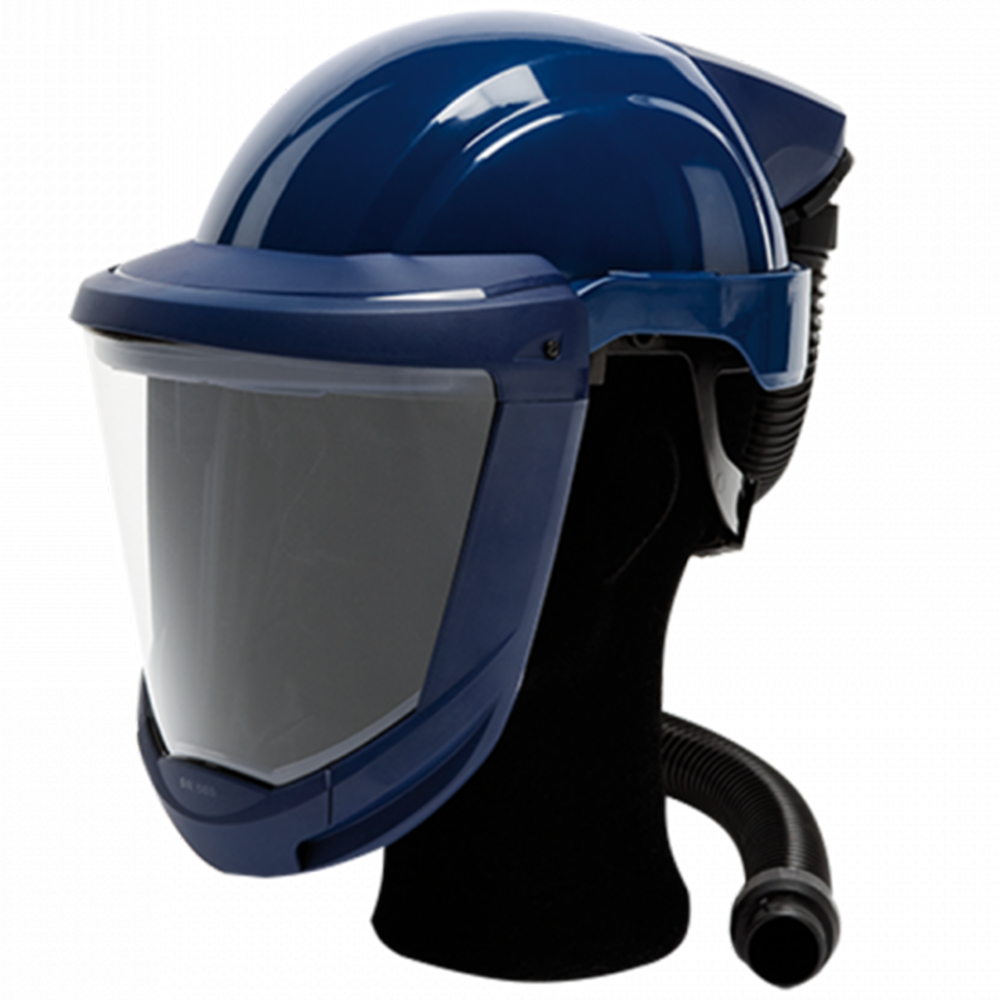

The SR 580 together with the battery-powered SR 500, SR 500 EX or SR 700 fan and approved filters are included in the Sundström fan-assisted respiratory protection device systems. The breathing hose of the helmet with visor is to be connected to the fan, equipped with filters. The pressure generated in the visor prevents particles and other pollutants from entering the breathing zone. The SR 580 can also be used with the SR 507 compressed air equipment. This combination forms a breathing apparatus designed for continuous air flow, for connection to a compressed air supply. See separate product leaflet SR 507. The equipment can be used as an alternative to filter respirators in all situations for which filter respirators are recommended. This applies particularly to work that is hard, warm or of long duration.
| Art.nr. | H06-8012 |
|---|---|
| Color | Blue |
| Shelf life (years) | 5 |
| Country of manufacture | Sweden |
| Operating temp. | -10 – +55 °C, < 90 % RH |
| Storage temp. | -20 – +40 °C, < 90 % RH |
| Nom. protection factor | 200 (3A,3B), 500 (TH3) |
| Approval | EN 12941:1998 + A2:2008, EN 14594:2005, EN 166, EN 397 |
| Directive 2 | ATEX 2014/34/EU |
| Classification 2 | II 2 D Ex ib IIIC T195° Db, II G Ex ib IIA T3 Gb |
| Assign. protection factor | 40 (3A,3B), 40 (TH3) |
| Directive 1 | (EU) 2016/425 PPE |
| Model description | SR 580 |
